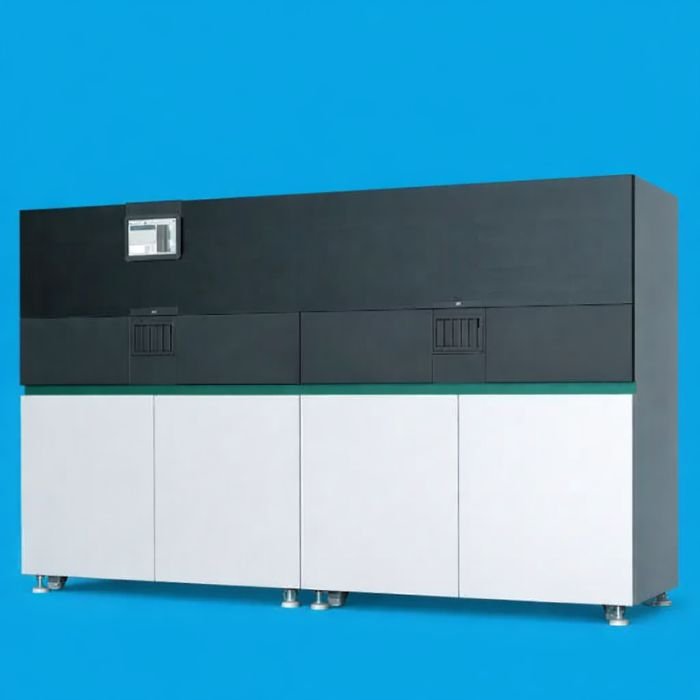

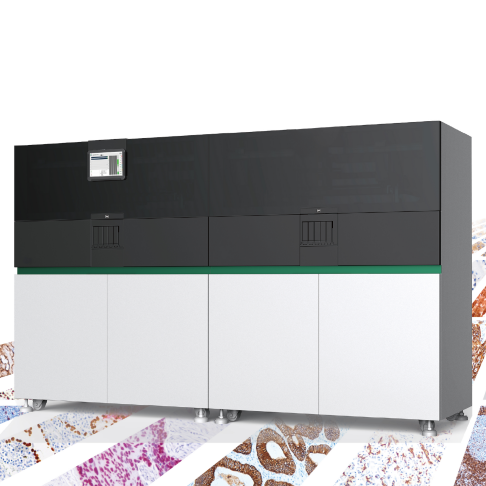

The GBS-ST-120 Full-automatic IHC & ISH Stainer is a powerful, all-in-one solution designed to streamline the complete immunohistochemistry and in situ hybridization workflow. Capable of performing baking, deparaffinization, antigen retrieval, blocking, detection, and counterstaining on a single platform, it delivers fast turnaround times with exceptional consistency. Supporting up to 120 slides per run across multiple trays, the system combines high throughput with precise temperature control and automated reagent handling to ensure reliable, reproducible staining results. Ready-to-use reagent kits and validated protocols further simplify operation while maintaining high staining quality.
Engineered for flexibility, efficiency, and user convenience, the GBS-ST-120 features an intuitive software interface with real-time monitoring of reagent volume, runtime, and system status. Robotic arms and bulk liquid handling enable continuous loading and simultaneous execution of multiple protocols, including IHC, ISH, mIHC, ICC, and mIF. Independent temperature control for slide and reagent chambers, adjustable dispense volumes, and dedicated waste separation enhance both performance and environmental safety. With its robust automation, scalable capacity, and smart workflow design, the GBS-ST-120 is an ideal choice for high-volume clinical and research laboratories seeking speed, accuracy, and operational efficiency.
Technical Parameters
Fully Automatic: Baking, deparaffinization, antigen retrieval, blocking, detection, and counterstaining for IHC, mIHC, and ISH.
Intuitive Software Interface: Visual monitoring of reagent volume, running time, and fault messages.
Slide Capacity: 6 trays, up to 60 slides; supports continuous loading.
Functions: Supports IHC, mIHC, fast frozen IHC, ICC, ISH, mIF, etc.
Turnaround Time: 2.5–4 hours.
Temperature Control: 60 independent heating plates; slides can be heated up to 100 °C for antigen retrieval.
Dispense Volume: Precise positioning and dispensing; adjustable from 80 µl to 150 µl.
Reagent Container Capacity: 7 ml and 30 ml; V-shaped design to minimize dead volume.
Reagent Position Capacity: 72 positions.
Bulk Liquid Container Capacity: 4 L.
Probe Material: Titanium alloy coated with Teflon.
Environmental Friendly: All reagents are non-hazardous except DAB, which is disposed of separately.
