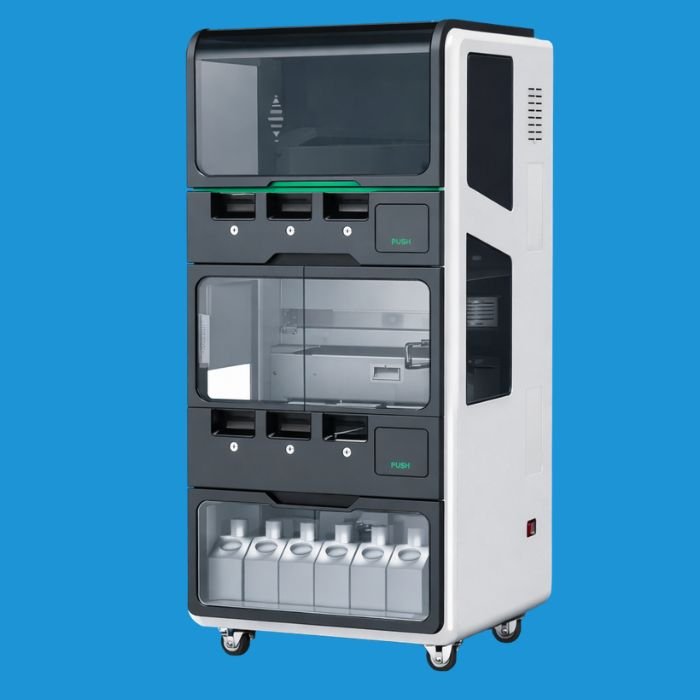

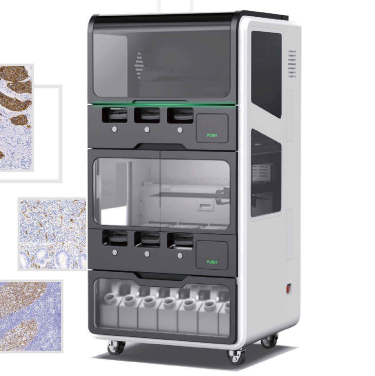

The GBS-ST-60 Fully Automatic IHC Stainer is a compact yet powerful solution designed to deliver high-quality immunohistochemistry staining with enhanced specificity and sensitivity. Supporting a complete automated workflow—including baking, deparaffinization, antigen retrieval, blocking, detection, and counterstaining—the system ensures consistent and reproducible results while minimizing manual intervention. With a slide capacity of up to 60 slides and precise dispensing control adjustable from 80 µl to 150 µl, the GBS-ST-60 is ideally suited for laboratories seeking reliable performance in a space-efficient footprint.
Built for efficiency and ease of use, the GBS-ST-60 features an intuitive software interface with real-time monitoring of reagent volume, runtime, and system status. Sixty independent heating plates provide accurate temperature control up to 100 °C for optimal antigen retrieval, while flexible protocol support enables IHC, mIHC, fast frozen IHC, ICC, ISH, and mIF applications. Environmentally conscious waste handling and durable, Teflon-coated titanium probes further enhance operational safety and longevity. Combining innovation, reliability, and high-throughput capability, the GBS-ST-60 is an ideal choice for routine and advanced IHC laboratories.
Technical Parameters
Fully Automatic: Baking, deparaffinization, antigen retrieval, blocking, detection, and counterstaining for IHC, mIHC, and ISH.
Intuitive Software Interface: Visual monitoring of reagent volume, running time, and fault messages.
Slide Capacity: 6 trays, up to 60 slides; supports continuous loading.
Functions: Supports IHC, mIHC, fast frozen IHC, ICC, ISH, mIF, etc.
Turnaround Time: 2.5–4 hours.
Temperature Control: 60 independent heating plates; slides can be heated up to 100 °C for antigen retrieval.
Dispense Volume: Precise positioning and dispensing; adjustable from 80 µl to 150 µl.
Reagent Container Capacity: 7 ml and 30 ml; V-shaped design to minimize dead volume.
Reagent Position Capacity: 72 positions.
Bulk Liquid Container Capacity: 4 L.
Probe Material: Titanium alloy coated with Teflon.
Environmental Friendly: All reagents are non-hazardous except DAB, which is disposed of separately.
